DESCRIPTION：

SEPARATE GLJBQ series mud agitator is part of the drilling fluids solids control equipment

APPLICATION：

Mud Agitator is mainly used to agitate and mix the drilling mud to prevent solids particles from depositing in the circulating tank and to stabilize the performance of drilling fluids.

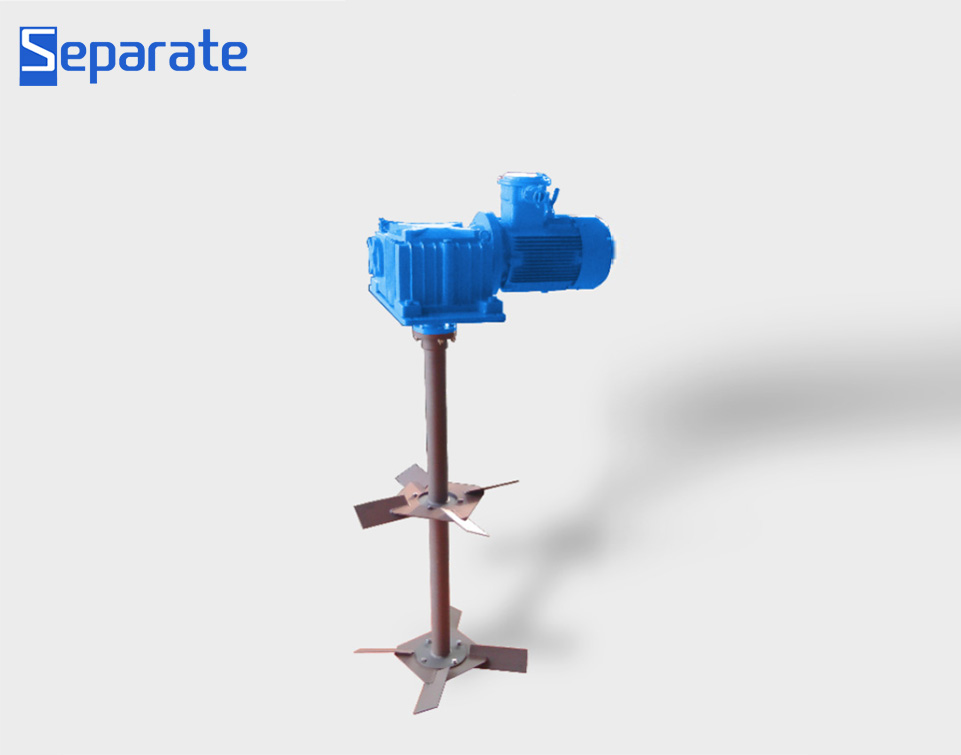

It is composed of explosion-proof motor, speed reducer, motor base and blade. The motor and speed reducer, speed reducer and impeller shaft are connected by steel coupling. The impeller is welded with four blades.

FEATURES & BENEFITS：

1. Helical-bevel gearbox　

2. Explosion-proof electric motor　　

3. Able to process 20 ppg drilling fluids 　　

4. Power available ranging from 2.2 to 30KW 　　

5. Compact, quiet, smooth and easy to maintain

TECHNICAL PARAMETERS：

Model

Motor Power

(kw)

Speed

(rpm)

Impeller Dia.

(mm)

Impeller Qty

(pcs)

Driven Ratio

Weight

(kg)

Dimension

(mm)

GLJBQ030

3









60/72

(50Hz/60HZ)

650

1

25:1

182

713x560x472

GLJBQ055

5.5

850

1

303

910x700x600

GLJBQ075

7.5

950

1

363

993x750x610

GLJBQ075S

800

2

380

GLJBQ110

11

1050

1

     488

1143x840x660

GLJBQ110S

850

2

505

GLJBQ150

15

1100

1

510

1173x840x660

GLJBQ150S

950

2

530

GLJBQ185S

18.5

1050

2

776

1265x1000x732

GLJBQ220S

22

1100

2

850

1265x1000x732

Note:

1. The explosion-proof standard is EXdIIBt4/IECEX/A-TEX;

2. The above weight and dimensions do not include the stirring shaft, and the stirring shaft is 15 kg/m;
