Sludge Treatment

DESCRIPTION：

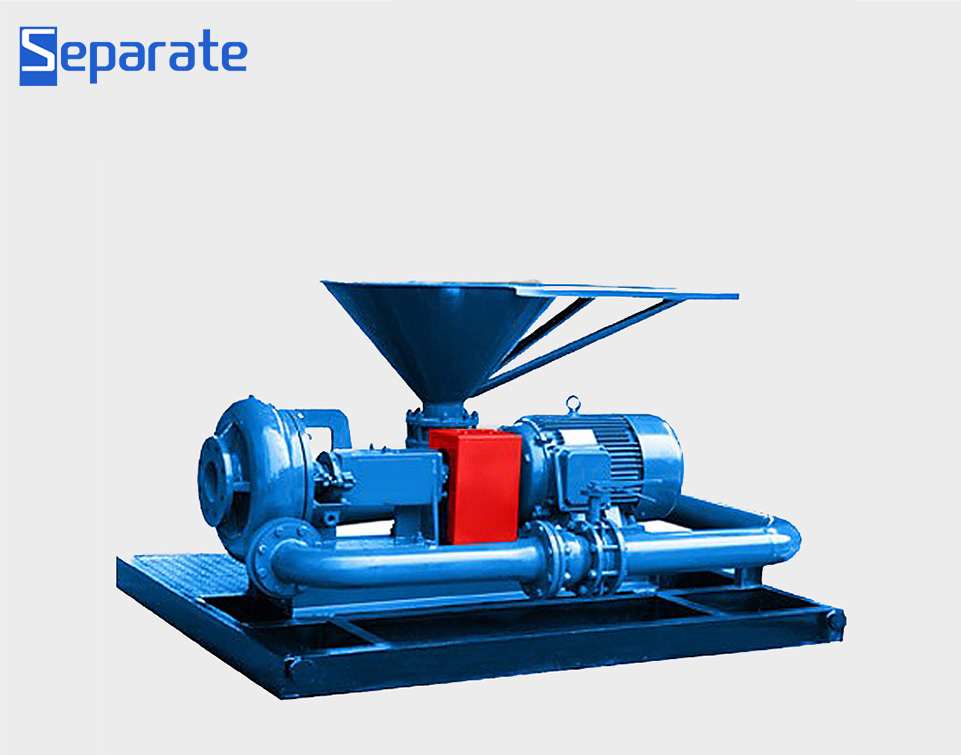

SEPARATE GLSL Series Jet Mud Mixer is used to concoct the drilling fluids and to change its density and viscosity.

APPLICATION：

GLSL series Jet Mud mixer aslo called mud mixing hopper unit is special equipment to prepare and increase the drilling fluids weight by adding and mixing  bentonite, change the fluid density, change the mud density, viscosity, and dehydration. The effect is more prominent matching with Shear Pump. GLSL jet mud mixer is a unit used together with the solids control system for petroleum drilling and horizontal directional drilling(HDD). The unit includes one sand pump, one venturi mud mixing hopper and one jet mud mixing hopper and pump that are installed in a base with pipe valves. It is safe and stable and can be moved conveniently. At the same time，we can make Twin-Hopper Unit with two pumps according to the user requirements.It is designed by GLSL solids control bentonite mud mixer,drilling mud tank jet mixer.

FEATURES & BENEFITS：

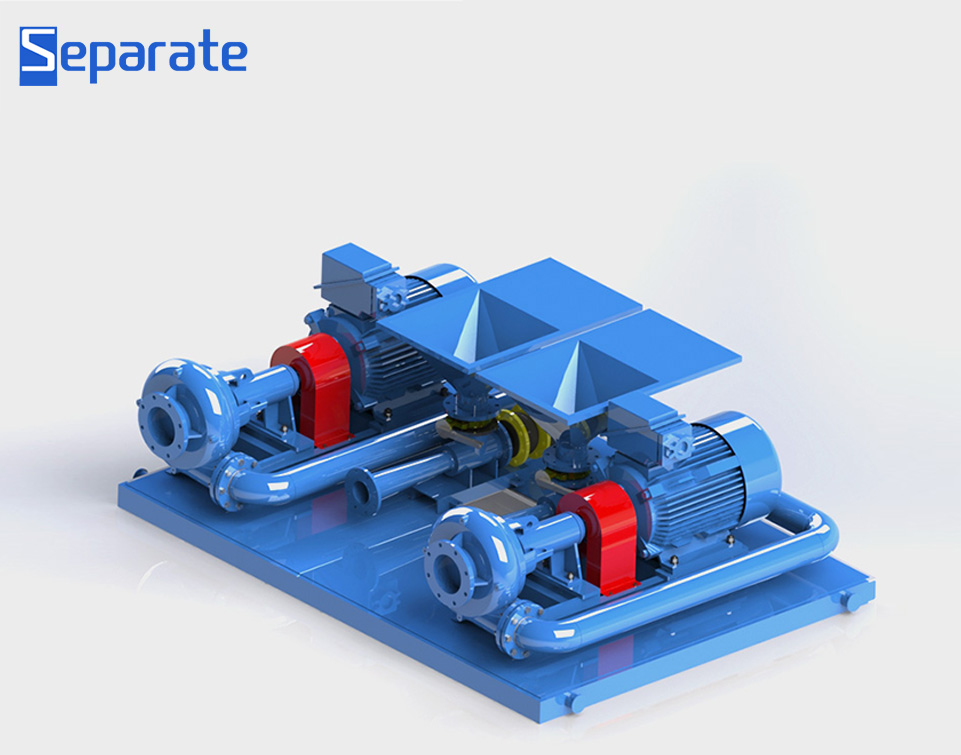

1. Mud Mixer is a single jet mixer combined with 45 KW ( or 55 KW ) sand pump and a jet mud hopper or a double jet mixer of two pumps and two hoppers.

2. The weighting hopper can be combined with a pump or be used independently with pump connected together by manifold valve.

3. Put the drilling fluids materials ( bentonites, barite powder ) and the corresponding chemical additives ( polymer ) into circulation tank for increasing the total.

TECHNICAL PARAMETERS：
