DESCRIPTION：

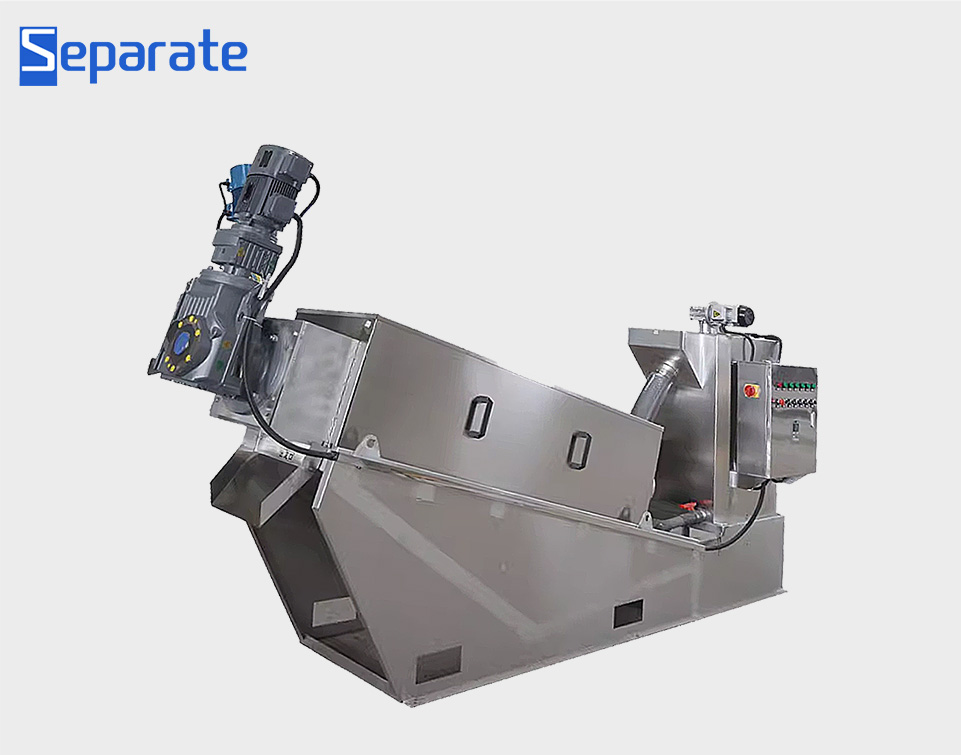

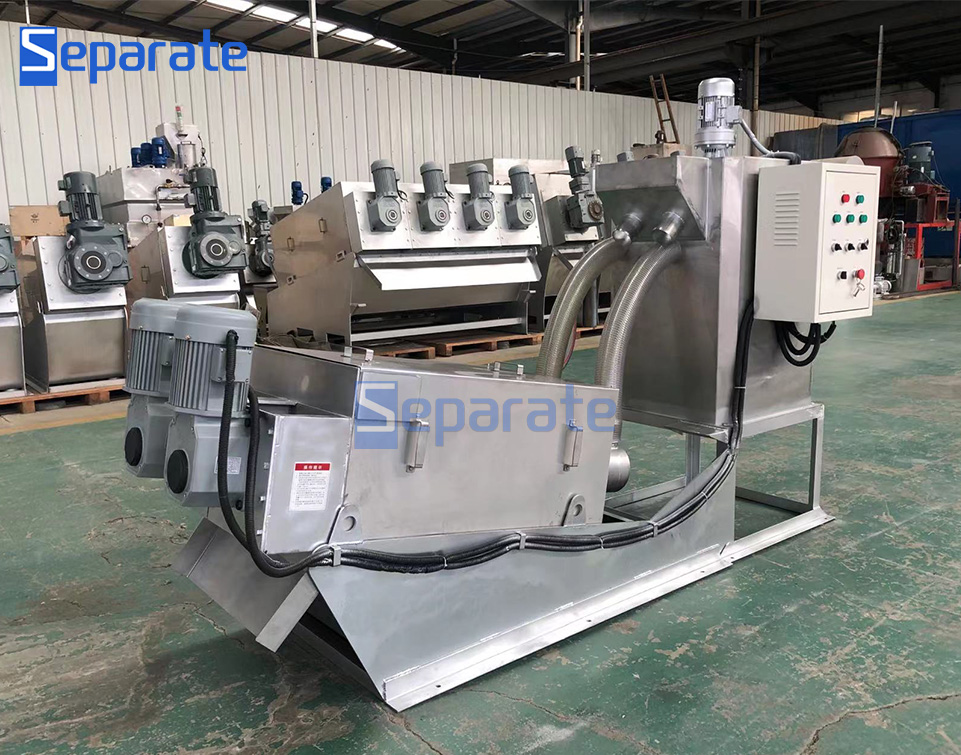

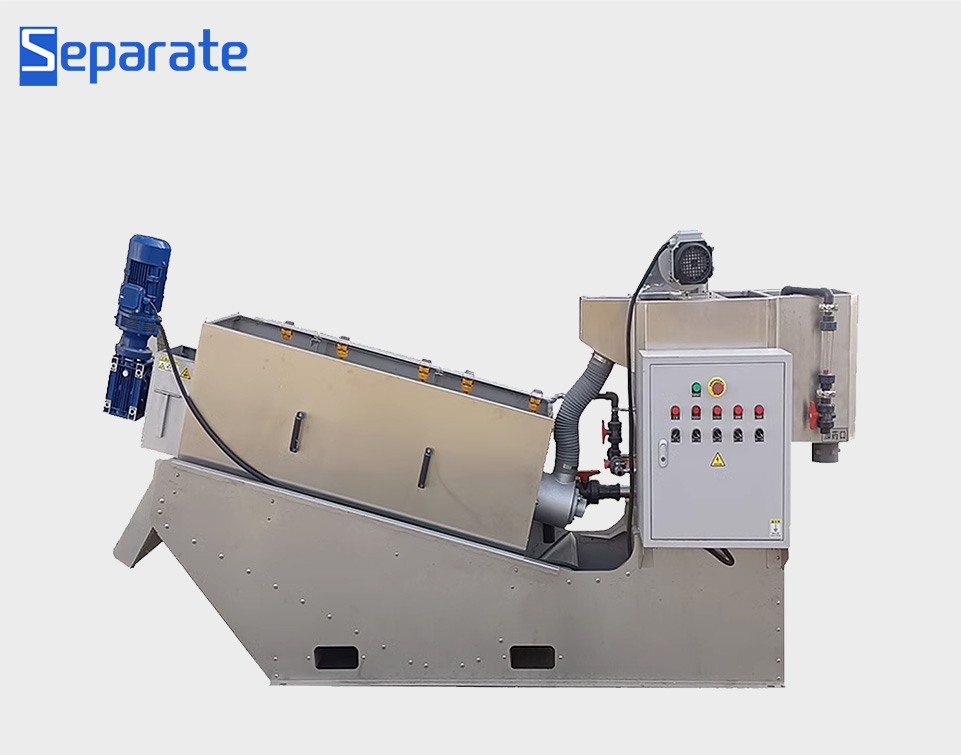

Multi disc screw sludge dewatering machine is a new type of solid-liquid separation equipment, which uses the screw extrusion principle, through the strong extrusion force generated by the change of screw diameter and pitch, as well as the tiny gap between the moving ring and the fixed ring, to realize the extrusion dewatering of sludge.

APPLICATION：

  • Municipal water and wastewater treatment plants

  • Plastic recycling sludge treatment

  • Textile industry dyeing sludge treatment

  • Tannery leather sludge treatment

  • Slaughter breeding sludge treatment

  • Agricultural/fishery community wastewater treatment plants

  • Industrial waste treatment plants

  • Food/beverage production sludge treatment

  • Dairy farming/Meat processing sludge treatment

  • Chemicals manufacturing sludge treatment

  • Other plants requiring dewatering machine (paper manufacturing, building material manufacturing, oilfield associated water accompanied with crude oil mining, etc.)

FEATURES：

  • Not easy to block

  • Continuous automatic operation without manual intervention

  • Integrated design saves operation cost

  • No secondary pollution

  • Stainless steel material, durable

TECHNICAL PARAMETERS:


Model

Capacity（DS）

Output sludge cake capacity（per hour）

≤10000mg/L

10000~30000mg/L

Power

Weight

Water content ≤99%

Water content 99~97%

Solid content ≤1%

Solid content 1~3%

GLDL-101

8~10 kg/h

0.04 ~0.05 T

1~1.2 m³/h

0.5~1.2 m³/h

0.35 KW

0.2 T

GLDL-201

18~25 kg/h

0.09 ~0.13 T

2~ 4 m³/h

1.5~2 m³/h

0.55 KW

0.35 T

GLDL-301

40~60 kg/h

0.2 ~0.3 T

8~12m³/h

3~10 m³/h

1.65 KW

0.5 T

GLDL-302

80~120 kg/h

0.4 ~0.6 T

16~24m³/h

6~20 m³/h

2.95 KW

1 T

GLDL-303

120~ 180kg/h

0.6 ~0.9 T

24~36m³/h

9~30 m³/h

4.05 KW

1.5 T

GLDL-351

80~100 kg/h

0.4 ~0.5 T

10~16m³/h

5~10 m³/h

2.25 KW

0.8 T

GLDL-352

160~220 kg/h

0.8 ~1.1 T

20~32m³/h

10~20 m³/h

3.75 KW

1.6 T

GLDL-401

130~160 kg/h

0.65 ~0.8 T

16~20 m³/h

7~18 m³/h

2.95 KW

1.2 T

GLDL-402

260~320 kg/h

1.3 ~1.6T

32~40 m³/h

14~36 m³/h

5.15 KW

2.4 T

GLDL-403

390~480 kg/h

1.95 ~2.4 T

48~60 m³/h

21~48 m³/h

7.35 KW

3.6 T

GLDL-404

520~640 kg/h

2.6 ~3.2 T

64~80 m³/h

28~72 m³/h

10.3 KW

3.6 T

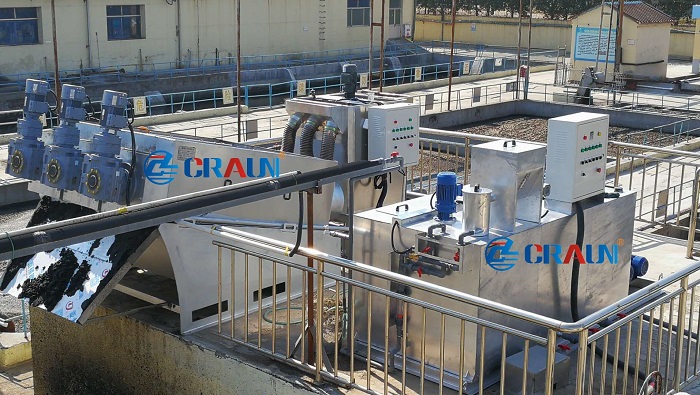

RELATED CASES:


Screw press oper(11-23-14-10-52).jpg
