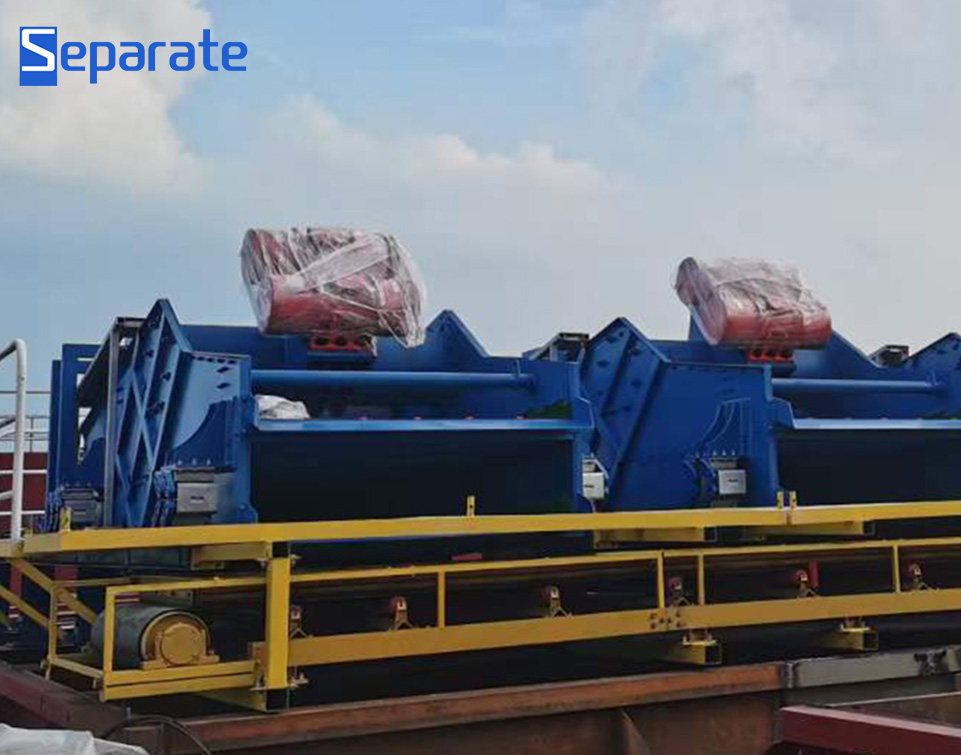

DESCRIPTION：

The vibrating screen from SEPARATE is the first stage of solid control equipment in the drilling purification system. It is capable of removing cuttings larger than 75μm from the drilling fluid, retaining the liquid with smaller particles in the lower tank, and then directing it to the next stage of solid control equipment for further processing.

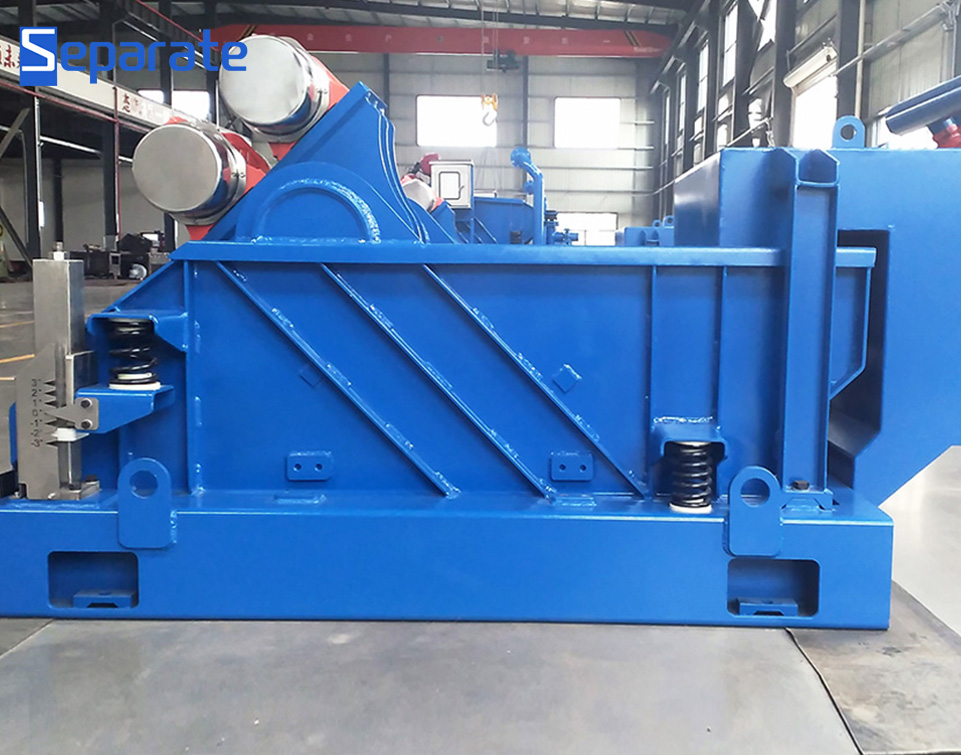

The Economy of Linear Motion Shale Shaker:

SEPARATE Linear Motion Shale Shaker is especially effective while drilling top-hole sections where heavy and high-volume solids are usually encountered. In these intervals, shakers may generate powerful G-forces and its effective vibrating motion can quickly remove the dense solids from screens and particles from wells.

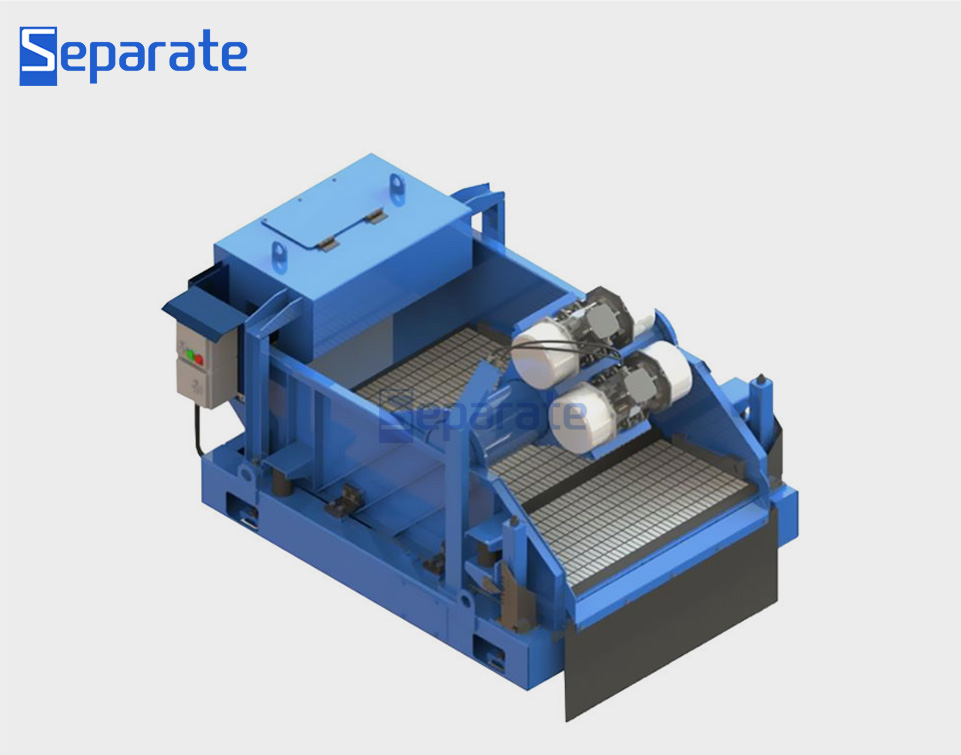

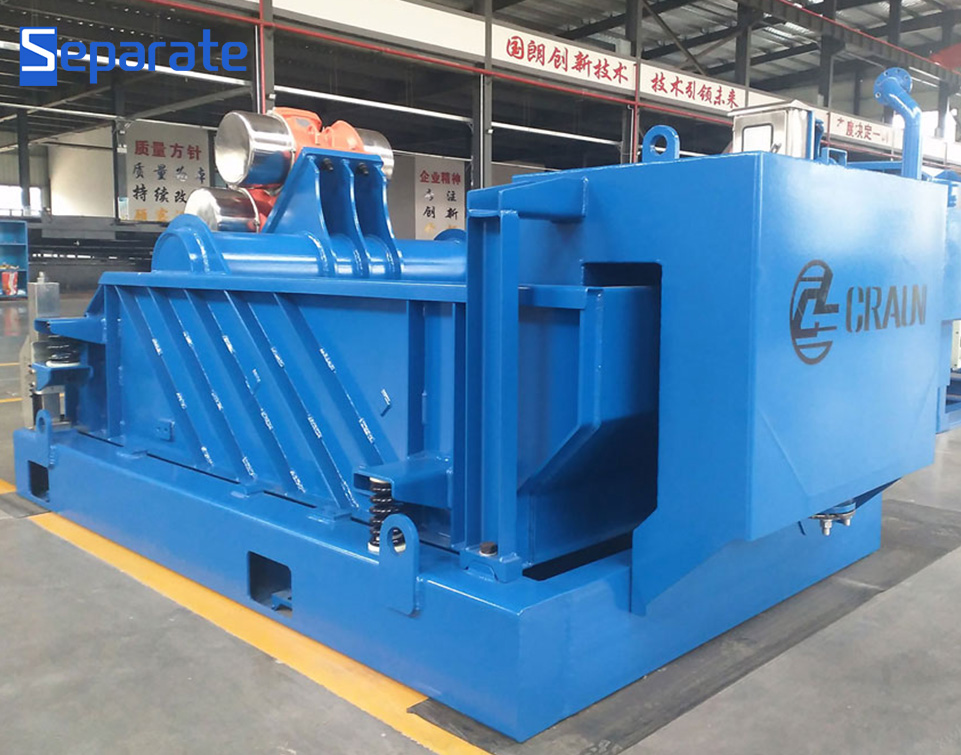

FEATURES & BENEFITS：

  1. Adopting the superior material Q235B from domestic large steel mills, wear resistant rubber protection on the bottom beam;

  2. The whole design adopts the mechanics analysis & ANSYS finite element analysis to avoid the resonance during the usage of the shaker and make sure the Optimization of screening effect;

  3. The angle of shaker box is adjusted synchronously by screw rod, which can be controlled from - 1 ° - 5 °;

  4. The Composite，Stainless steel, Iron framework screen can be provided according to the medium and control particles ;

  5. Motor: International brand high G motor with free maintenance, Martin/Oli motor;

  6. Screen can be disassembled and installed quickly by adopting the wedge block pressing device;

  7. Vibrating beam adopts the integral profile design, as well as adopts the twice heat treatment and stress relief technology.

TECHNICAL PARAMETERS：

Model/

GLZS103E

GLZS104E

GLZS104D

GLZS208

GLZS206

Capacity/

m3/h

≤120

≤150

≤150

≤150

≤120

gpm

≤528

≤660

≤660

≤660

≤528

Motor Power/(kW)

1.5×2

1.72×2

1.865×2

1.94×2

1.865×2

Output Force/(Gs)

≤7.5

≤7.5

≤8.0

≤8.5

≤8.0

Double   Amplitude/(mm)

4.2~6.0

4.5~6.5

4.5~6.5

4.6~6.7

4.8~7.0

Deck Adjustment

-1 °~+5°

-1 °~+5°

-1 °~+5°

-1 °~+5°

-1 °~+5°

Screen Material

Composite material

Composite material

Stainless steel gap

Stainless steel gap

Stainless steel gap

Metal frame

Metal frame

Polyurethane

Polyurethane

Polyurethane

Screen Size (mm)

585×1165

585×1165

585×1165

585×1165

585×1165

Screen Qty (pcs)

3

4

4

8

6

Screen Area/(m3)

2.04

2.73

2.73

5.46

4.1

Design scope/设计范围

℃

-25-50

-25-50

-25-50

-25-50

-25-50

°F

（-13-122）

（-13-122）

（-13-122）

（-13-122）

（-13-122）

Noise (dBA)

75-85

75-85

75-85

75-85

75-85

Weight (kgs)

1420

1650

1720

1850

1530

Dimension (mm)

2370X1690X1420

2950×1690×1420

2950×1690×1420

2950x1690x1450

2370X1690X1440

Explosion-proof

ExIIBt4/IECEx/ATEX

N/A

N/A

N/A

Remark

The processing capacity of the above equipment is measured under: the mud density is 1.2g/cm³, the mud viscosity is 45s, and the screen is 40 mesh.
