DESCRIPTION：

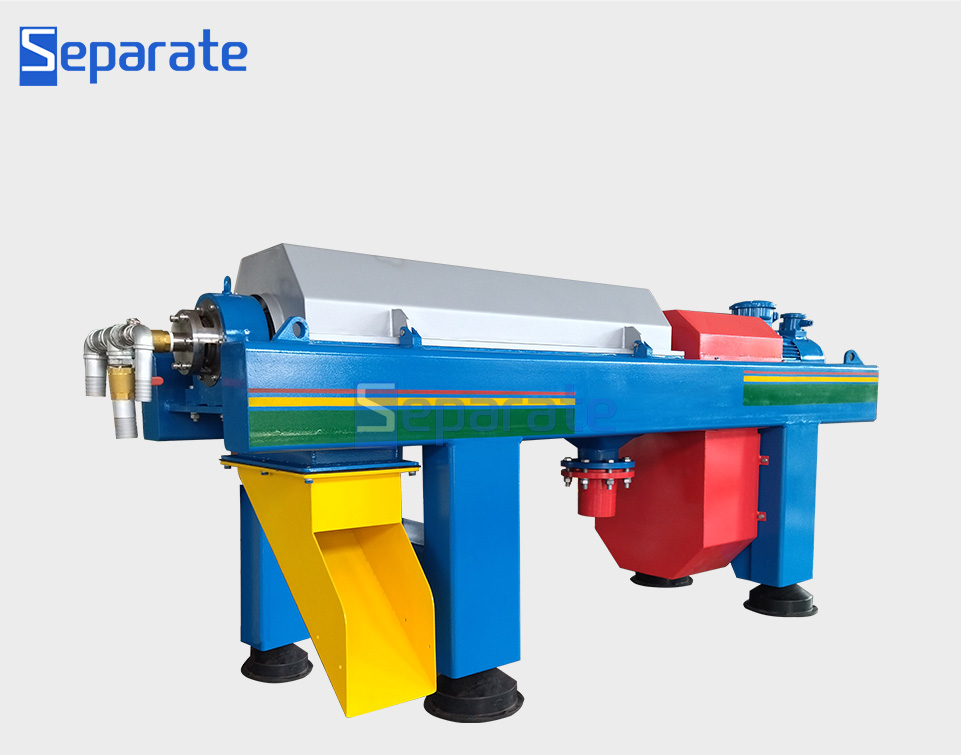

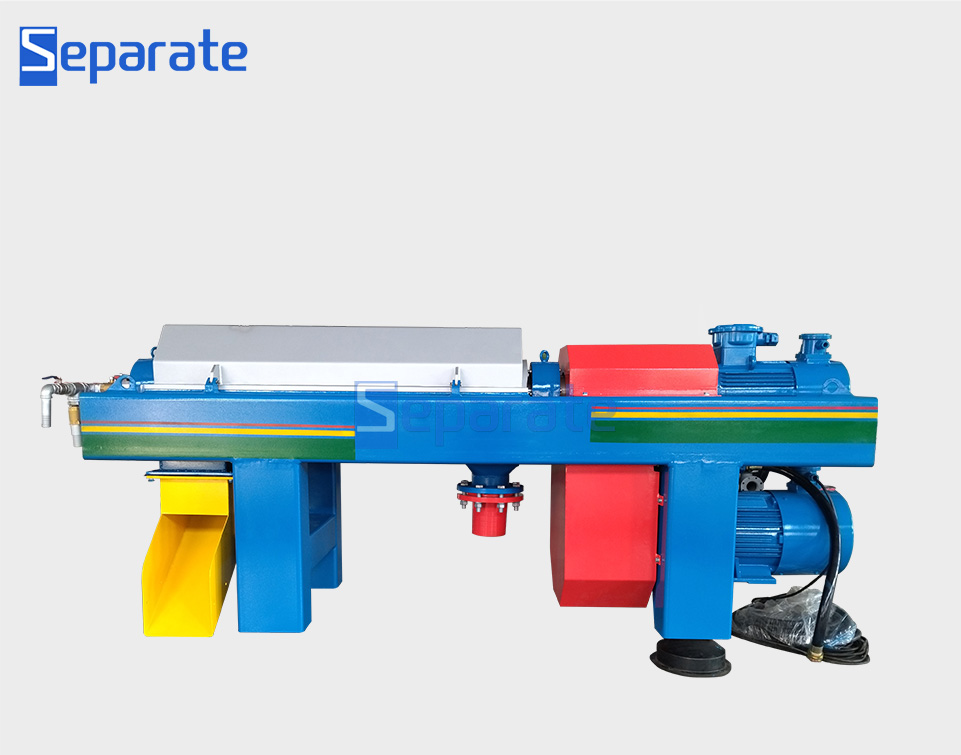

SEPARATE Decanter Centrifuge is designed for the drilling mud solids control and oilfield waste management. SEPARATE VFD drive decanter centrifuge with variable speed allows drilling contracor or mud service company to do the barite recovery, fine/ ultra fine solids separation,dewatering centrifuge. SEPARATE have the decanter centrifuge from 9 inch bowl to 30 inch bowl available for different applications.SEPARATE decanter centrifuge bowl length and diameter ration is over 3, this gives the best result for the drilling fluids cleaning.

The decanter centrifuge is driven by two motors. The main motor drives the drum and the differential case through the belt, and the auxiliary motor drives the propeller after the differential is shifted. This will cause the drum and propeller to spin in the same direction with a certain differential speed.

APPLICATION：

SEPARATE GLLW series decanter centrifuges are used to separate suspended solids with a diameter ≥ 2 μm and process drilling mud and drilling fluid. It is especially effective in the oilfield service industry, industrial service industry, especially when used in environmentally sensitive areas. The centrifuge has high recovery rate and good solid control effect, which can significantly reduce drilling fluid supply and management costs. This is a very precise dynamic balancing machine that can run stably in the speed range of 0 - 3900 and generate a centrifugal force of 3000G.

Environmental Protection Industry

1. Thickening and dewatering of various sludge in municipal sewage treatment plants

2. City tap water sludge dewatering and city domestic sludge dewatering

3. Printing and dyeing wastewater separation

4. Paper-making wastewater separation

5.Desulfurization waste water in power plants

6. Ceramics wastewater separation

7. Tannery sludge dewatering

8. Mine stone wastewater

9. Coal-washing wastewater

10. Oil drilling mud separation

11. Textile wastewater

12. Electroplating wastewater

13. Integrated wastewater in pharmaceutical factories

Chemical Industry

1. PVC resin dewatering

2. ABS resin dewatering

3. Classified dewatering of non-metallic mine clay granularity

4. Fuel dewatering

5. Chemical fiber

6. Tar

Food Industry

1. Soy protein separation

2. Starch dewatering

3. Vegetable oil separation

4. Deslagging of fruit juice beverages

5. Peanut protein separation

6. Dewatering of distillers’ grains

7. Cane sugar deslagging

8. Breeding industry

9. Butchery

10. Industrial wastewater in breweries

Pharmaceutical Industry

1. Separation of dregs extracted from traditional Chinese medicines

2. Saccharomycetes’ corpse treatment

Other Industries

1. Recycling of paint powder

2. Separation of calcium sulfate in concrete admixtures

3. Recycling of plastics’ crushed aggregates

4. Kaolin classification

5. Treatment of livestock’ faeces

FEATURES & BENEFITS：

1. Innovative design includes longer bowl, allowing drilling fluids to thread through more slowly, thus resulting in drier solids and finer separation point;

2. Big bowl offers big volume. It also generates high-G force;

3. Stainless steel bowl, scroll, compartment are available and covered with corrosion-proof coating so as to have longer lifespan;

4. Tungsten carbide scroll points with wide spacing flights at tapered end create a finer layer of conveyed solids for consistent, uniform separation and maximum solids control efficiency.

5. German FAG or Swedish SKF brand bearings are available;

6. Electrical Components complies with SIEMENS/Schneider ATEX or IEC Ex.

7. Screw pump and submersible slurry pump are provided to meet liquid feeding requirements of centrifuge of various customers

TECHNICAL PARAMETERS：

SEPARATE Solids Control based in China manufacture and supply complete line of high-speed, variable-speed and fully variable-speed decanting centrifuge for handling drilling fluids. Our factory and company are Quality Management System ISO 9001-2000 certified. SEPARATE Solids Control operate international oil gas drilling mud separation system. Ruggedly built for oilfield and industrial Solids control service, decanting centrifuge is especially effective in meeting fluid-on-cuttings discharge requirements in environmentally sensitive areas. decanting centrifuge also deliver high fluid recovery rates and efficient solids control to significantly reduce the operator’s total mud cost and limit waste disposal volumes.
