DESCRIPTION：

GLNJ Series Mud Gun is a bottom type mud gun, the Mud guns are meant to provide supplemental or primary mixing in mud tanks depending on the number being used and the pit size. They are best used in tank corners to keep solids from settling and a mud agitator is placed in the tank center.

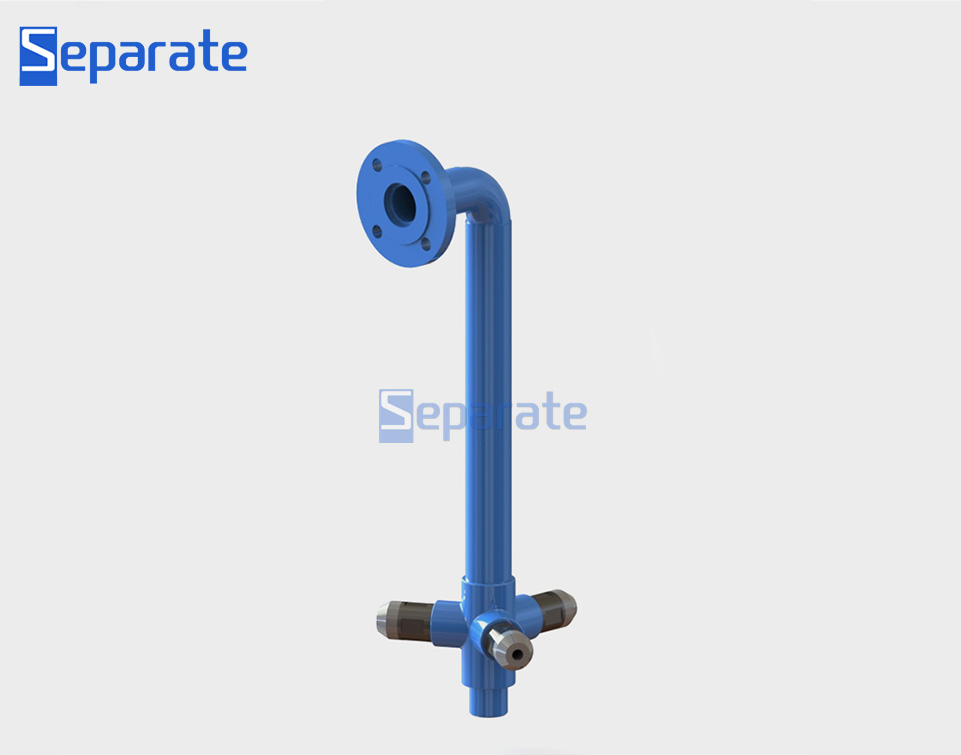

The number of mud gun depends on the size of tank. Usually mud gun installed with mud line of mud tank. According the inlet pipe size, there are 2’ mud gun and 3’ mud gun for option. According to different structure feature, there are two types of mud gun: fixed mud gun , and rotary mud gun.


APPLICATION：


SEPARATE  drilling mud gun mainly jets drilling fluids with high pressure inside mud tanks, in a bid to avert depositing solid phase at each corner of mud tank and pump inlets, and to deliver drilling fluids amongst compartments.


FEATURES & BENEFITS：

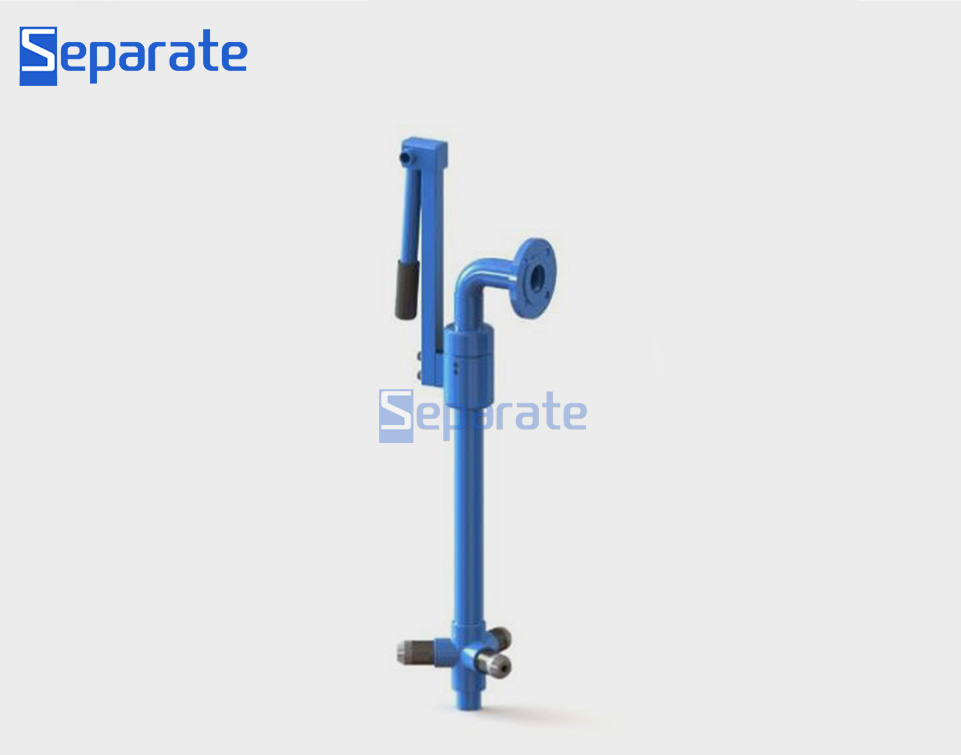

1. SEPARATE oilfield mud gun can be adjusted by rotating at a wide angle.


2. The jet nozzle used is both replaceable and wearable.

TECHNICAL PARAMETERS：


Model

Max. working pressure

Rotation angle

Number of nozzles

Size

Interface size

GLNJQ50-3

6.4MPa

0°

3个

DN50(2")

G2"

GLNJQ50-3X

6.4MPa

270°

3个

GLNJQ80-3

6.4MPa

0°

3个

DN80(3")

G3"

GLNJQ80-3X

6.4MPa

270°

3个
