DESCRIPTION：

GLSB Series Centrifugal pump is used for transferring slurry or mud or water. It can be used as feeding pump for desander, desilter, or used as mixing pump for Jet Mud Mixer. Also it can be used as trip pump, and supercharging pump for rig mud pump. All GLSB model centrifugal pump use tungsten carbide mechanical seal, with famous brand Bearing. And spare parts interchangeable with most of the international Brand pump which helps customer to source spare parts easily. Open impeller design that lowers axial thrust loads, and make it easier for installation, repair and maintenance.

APPLICATION：

SEPARATE GLSB Series Centrifugal Pump is used for transporting drilling mud. It can be used as feeding pump for desander, desilter, or as mixing pump for jet mud mixer. Also it can be used as trip pump and supercharging pump for rig mud pump.

FEATURES&BENEFITS:

  1. All spare parts interchangeable with most of the international Brand pump which helps customer to source spare parts easily

  2. Thick, Strong Concentric casing provides extended life over conventional volute designs. The Concentric design minimizes turbulence and abrasive wear.

  3. Pump casing made from hard ductile iron alloy, increased abrasion resistant capability compared to competitors pump.

  4. Wide open-vane impeller creates lower axial thrust for improved bearing life.

  5. Pump impeller made from hard ductile iron alloy, extended life over competitors design.

  6. Anti-loosening impeller lock bolt to eliminate pump damage in case of improper motor hook-up.

  7. High quality no-adjustment mechanical seal to provide zero leakage and longer operation life.

  8. Replaceable shaft sleeve prevents shaft wear.

  9. All bearings from top brand for reliable operation.

  10. The skid for supporting pump and motor is made from casting instead of welding to provide reliable operation and less vibration in a result to extend the pump and motor life.

TECHNICAL PARAMETERS：

Model

Flow
(m3/h)

Lift(m)

Motor Power (Kw)

Speed (rpm)

Impeller Dia. (inch)

Weight (kgs)

Dimension (mm)




GLSB8×6-14J

320

35

75

1450

14

1230

1968×651×940


GLSB8×6-12J

1750

12


GLSB8×6-13J

290

35

55

1450

13

900

1890×650×934


GLSB8×6-11J

1750

11


GLSB6×5-13J

200

35

45

1450

13

785

1860×560×835


GLSB6×5-10J

1750

10


GLSB6×5-12J

160

30

37

1450

12

765

1830×558×836


GLSB6×5-9.5J

1450

9.5


GLSB5×4-13J

120

35

30

1450

13

641

1740×568×820


GLSB6×5-11J

1750

11


GLSB5×4-12J

90

30

22

1450

12

620

1667×568×730


GLSB5×4-10J

1750

10


GLSB4×3-12J

55

28

15

1450

12

485

1617×510×710


GLSB4×3-10J

1750

10


GLSB4×3-12J

45

25

11

1450

12

465

1586×505×710


GLSB4×3-9.5J

1750

9.5


GLSB3×2-12J

23

29

7.5

1450

12

434

1500×480×650


GLSB3×2-11J

1750

11


 Explosion proof Standard

ExdIIBt4/IECEX/A-TEX


PRODUCTS PICS:

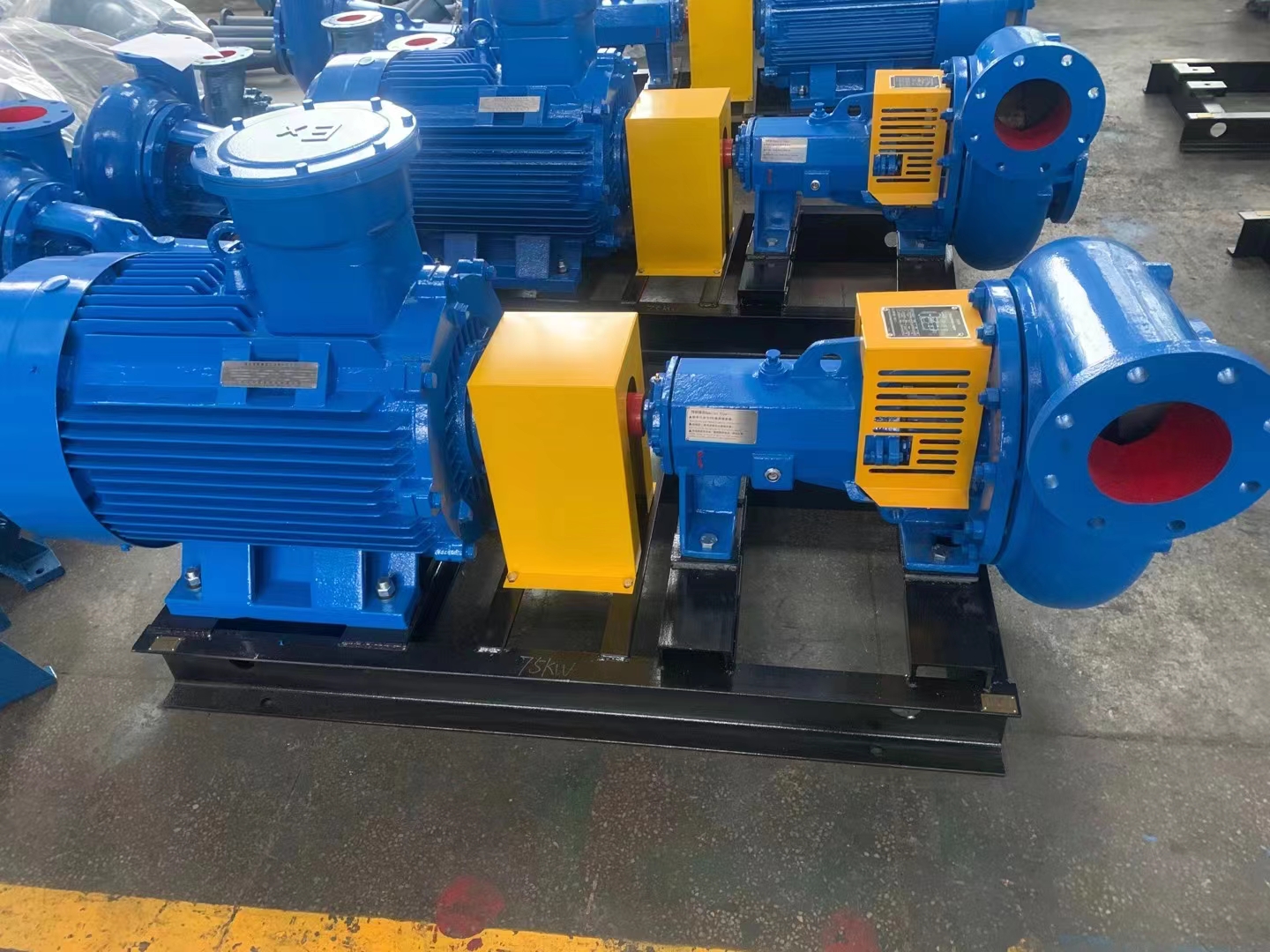

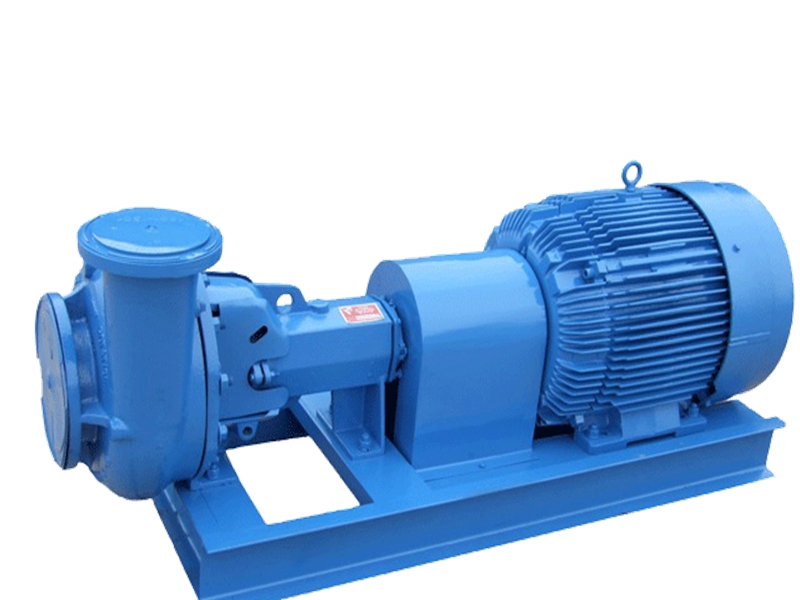

Oil drive sand pumpmission pumpdrilling fluid centrifugal pump

SEPARATE CENTRIFUGAL PUMP MARKET:

SEPARATE Centrifugal pump has been exported to many overseas countries. The reliable quality and cost effective solutions has helped SEPARATE Solids Control to win many orders of centrifugal pump from the world. With our branches and partners around the world, clients can get SEPARATE centrifugal pump and parts from local warehouses to save delivery time.
