DESCRIPTION：

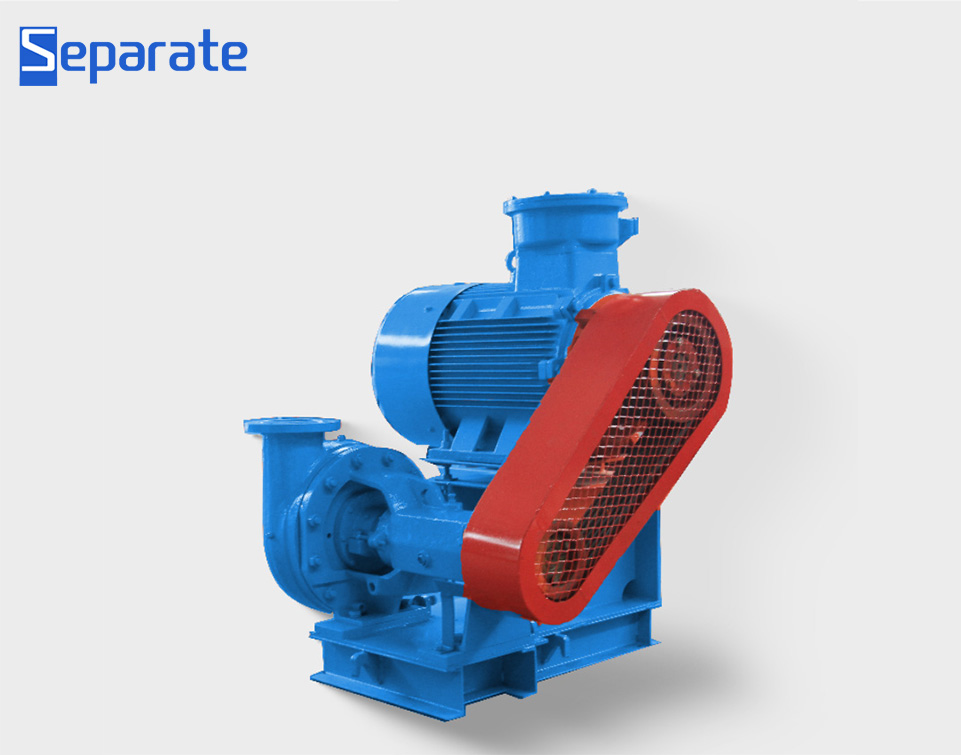

GLGQ series Shear Pump is new tape equipment which provides the fast configuration and treatment mud for the user, the user satisfy with configuration high performance mud. This series Shear Pump can mix effectively and hydrate completely the material added in the drilling fluid, save the mud material , reduce the time of configuration, and provide the high performance mud for the well drilling.

APPLICATION：

SEPARATE Series Shear Pump is mainly used for a quick concoction of high-performance mud so that the time spent on it will be greatly shortened and wells' economic benefits increased.

FEATURES & BENEFITS：

1. Greatly enhances the hydration of the soil particles.

2. Makes the compounds dilute, shear and hydrate in a shorter time while saving over 30% of bentonite.

3. Offers larger capacity and lift to meet the demands on concoction and mud processing.

TECHNICAL PARAMETERS：

Shear Pump


Model

Flow (m³/h)

Lift  (m)

Motor Power (kW)

Speed  (rpm)

Weight (kgs)

Dimension  (mm)


GLJQ6×5-370

100

25

37

1900

830

1250×985×840



GLJQ6×5-550

150

32

55

2200

930

1250×995×876
