DESCRIPTION：

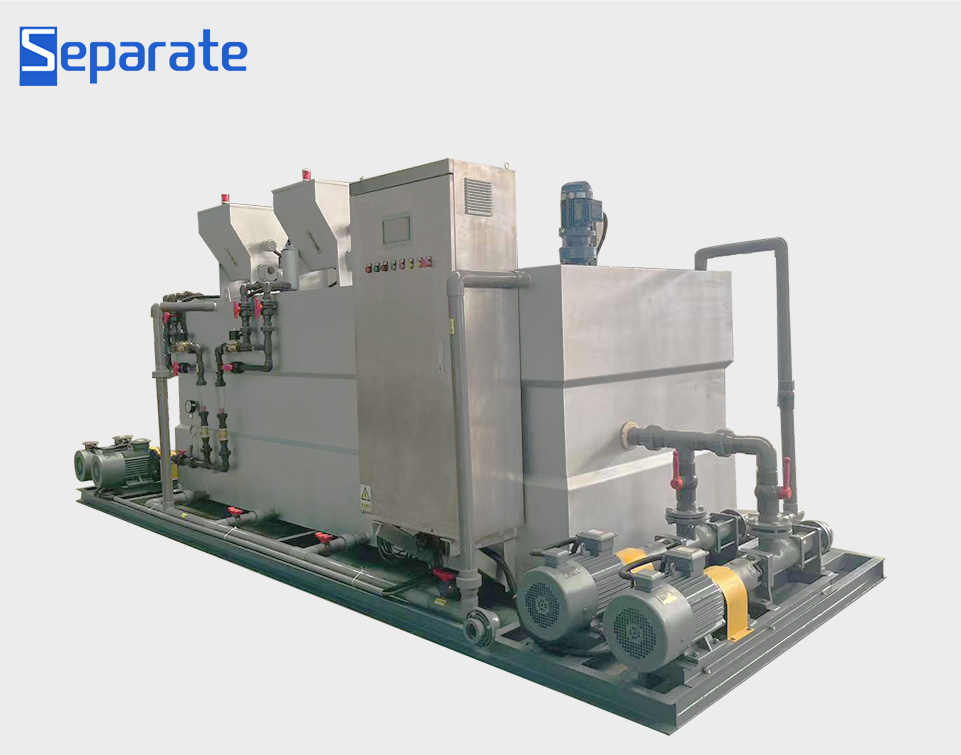

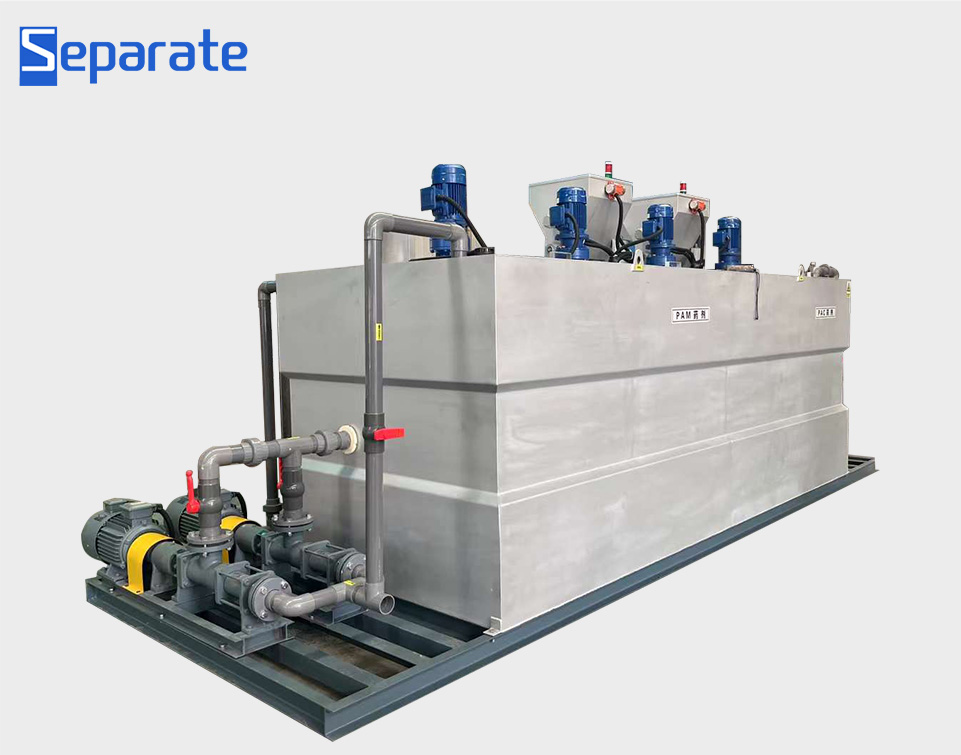

It is also called three chamber dosing device, which is composed of three chamber box, dry powder dosing system, solution mixing system, control system and liquid dosing system. The device is an automatic and continuous preparation and dosing system of powdery polymer flocculant. The dry powder flocculant enters the instant dissolver from the screw propeller for premixing with clean water, the wetted material enters the preparation tank for mixing and dilution, and is prepared according to the required concentration.

If it is a liquid flocculant, it is directly added to the preparation tank by screw pump. In the preparation process, the water inflow must be relatively stable under the observation of flowmeter, so as to ensure the concentration of the prepared solution remains unchanged in the whole working process.

FEATURES：

1. Integrate automatic batching, dissolution, dosing in one, automatic operation;

2. The quantitative dosing device has the advantages of accurate measurement, stepless transmission drive, convenient adjustment of feeding amount and wide concentration range;

3. With liquid level detection, flow control, auxiliary vibration feeding and other functions, high degree of automation.

TECHNICAL PARAMETERS：
