DESCRIPTION：

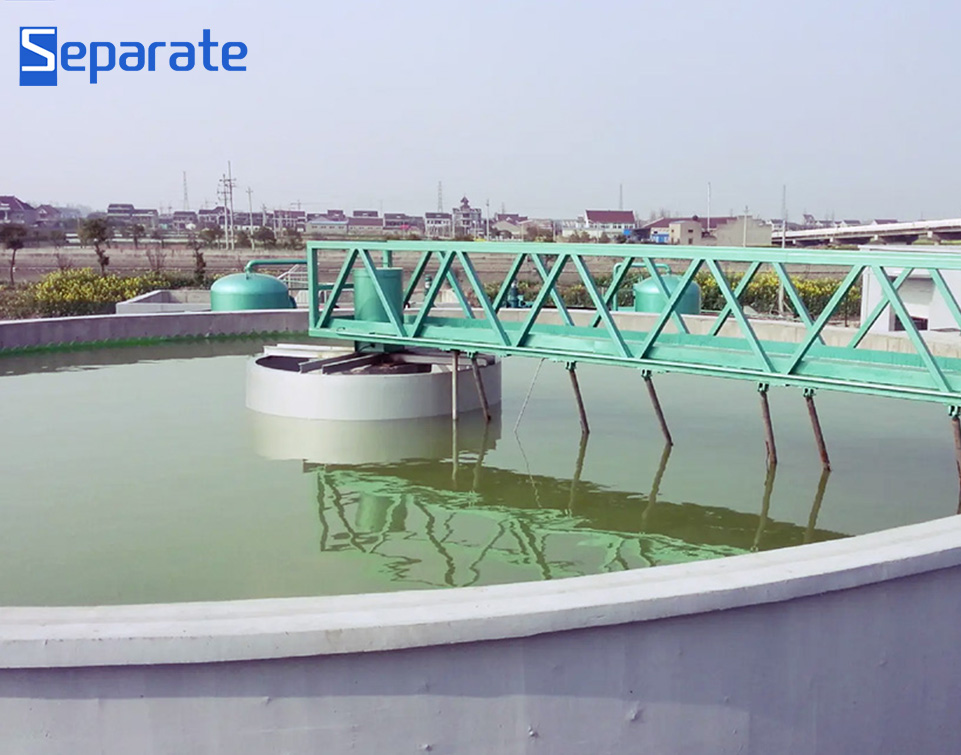

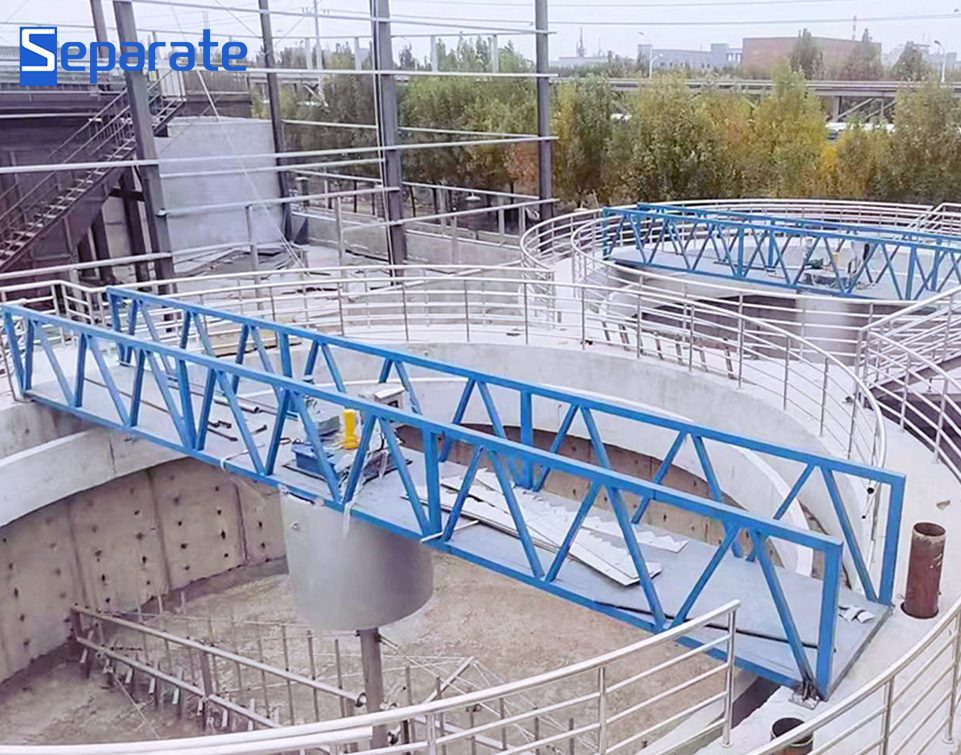

The load of the whole scrapper acts on the center of the working bridge. The scrapper is driven by the central driving mechanism. The directional scrapper scrapes the sludge from the bottom of the sedimentation tank into the central sludge collecting tank and discharges it from the sludge tank by hydrostatic pressure.

APPLICATION：

It is widely used in sedimentation tank and concentration tank for the following industry:

•Municipal & Domestic

•Tannery•Paper & Pulp•Dyeing & Printing

•Food & Beverage•Dairy•Agricultural•Slaughter & Farming

•Pharmaceutical & Petrochemical

FEATURES：

  • The driving device is driven by reduction drive mechanism, which is compact structure and high mechanical efficiency.

  • Scraping sludge from the tank bottom; the oblique pattern scrappers has good continuity and high efficiency of collecting sludge; the rubber scrapper is installed under the stainless steel scrapper to ensure that the scraping is thoroughly clean and there is no floating sludge.

  • Electrical and mechanical overload protection is adopted in the transmission part, which makes the operation safer and more reliable.

  • The underwater part is made of stainless steel which is corrosion resistance and long service life.

TECHNICAL PARAMETERS：

Model

Diameter（m）

Deep（m）

Linear Velocity（m/min）

Driving power（kw）

Weight（kg）

GLZXG--3

3

3

1-2

0.37-0.75

2500

GLZXG--4

4

3.5

1-2

3200

GLZXG--5

5

4

1-2

3800

GLZXG--6

6

4

1-2

4000

GLZXG--8

8

4.5

1-2

5000

GLZXG--10

10

4.5

1.5-2.5

6000

GLZXG--12

12

5

1.5-2.5

6800

GLZXG--14

14

5

2-3

0.75-1.1

7600

GLZXG--16

16

5

2-3

8300

GLZXG--18

18

5

2-3

9100

Customization is available.
